About this part

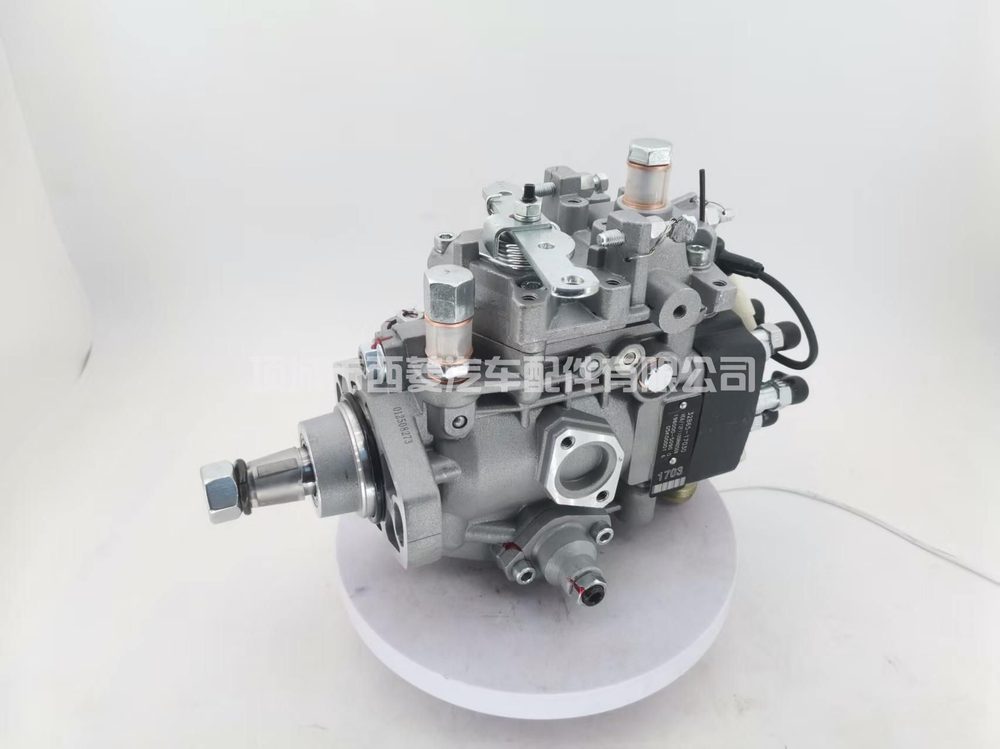

32B65-17030 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 32B65-17030, 32B65-17010. Application recorded for this part: Fits Caterpillar — S6S 3046 D3G XL D5G XL.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle.
Check supply pressure at the pump inlet and look for air in the clear line before assuming internal wear. Plenty of pumps get replaced for a blocked filter or a suction leak that costs a fraction to put right.
Fitting notes: timing is everything here. Set the pump against the engine's timing marks rather than forcing anything, prime thoroughly before cranking, and check that the lift pump is delivering adequate supply pressure. Also replace the mounting seal and confirm there is no air left in the system before the first start.
Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
Specifications
| Part number | 32B65-17030 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 32B65-17030, 32B65-17010 |
| Application | Fits Caterpillar — S6S 3046 D3G XL D5G XL |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
