About this part

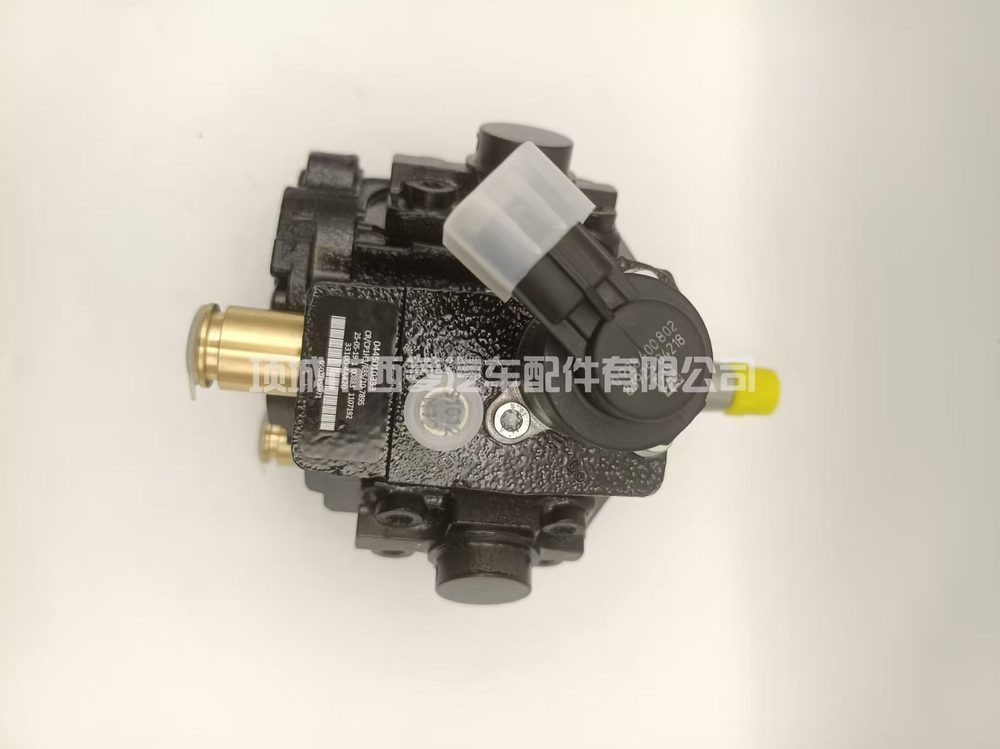

33100-4A420 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 33100-4A420, 0445010333. Application recorded for this part: Fits Hyundai.
This pump has two jobs that are easy to conflate: raising fuel to injection pressure, and metering the correct quantity at the correct moment. Wear affects both. The result is usually a combination of harder starting, drifting timing and visible smoke rather than one clean fault.
Symptoms associated with pump wear include hard starting when hot, loss of power, unstable idle, excess smoke, timing that will not hold, and in some cases diesel getting into the lubricating oil via a leaking drive shaft seal.
Eliminate the cheap causes first: filter condition, lift pump output, suction-side air leaks, fuel quality. Only then have delivery quantity and timing tested before committing to a replacement unit.
Fitment notes: this unit must be timed to the engine, not simply bolted on. Never force the shaft to align — turn the engine over to meet it. Prime the system before cranking, fit a new drive seal where specified, and verify supply pressure from the lift pump before start-up. Running a dry pump, even briefly, causes damage that no warranty will cover.
Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
Specifications
| Part number | 33100-4A420 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 33100-4A420, 0445010333 |
| Application | Fits Hyundai |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
