About this part

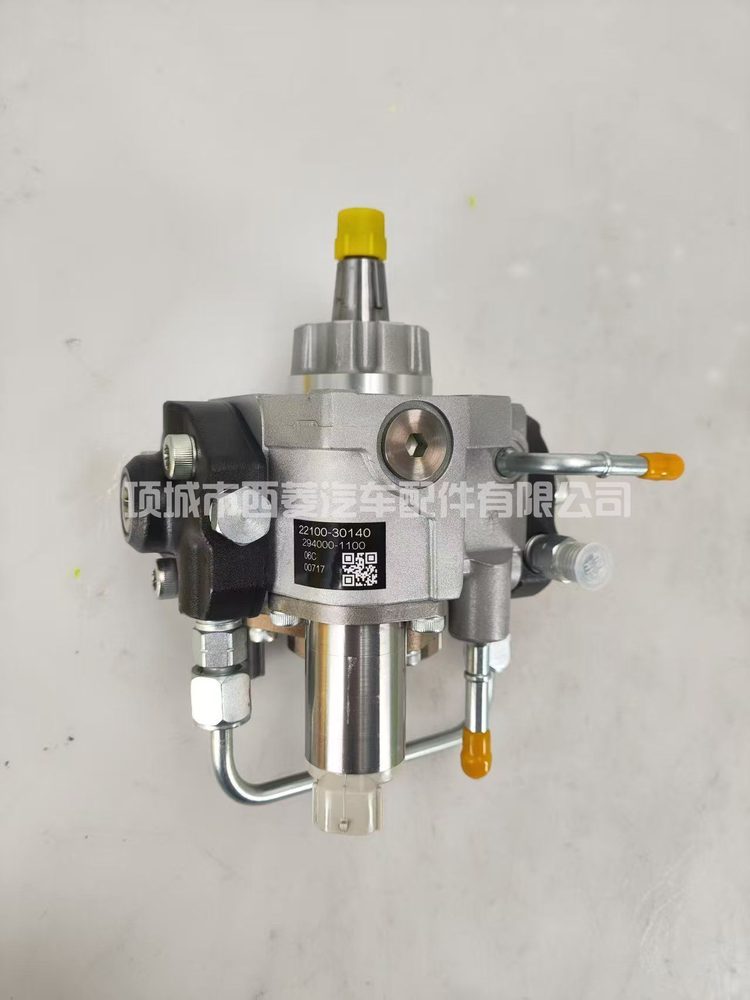

294000-1100 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 294000-1100, 22100-30140, 1KD-FTV. Application recorded for this part: Fits Toyota.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
The pattern is normally cumulative: slightly harder starting, then noticeable power loss, then smoke and unstable idle. Where the drive seal has failed, diesel in the lubricating oil is the warning that should stop you running the engine.
Diagnose the supply side before blaming the pump. Restricted filters, a tired lift pump or air being drawn into the suction line will produce symptoms almost identical to internal pump wear, and are far cheaper to resolve.
Installation notes: never rotate the pump by force to align it — bar the engine over instead. Prime before cranking, renew the drive seal, confirm supply pressure, and bleed the system properly. Dry running for even a few seconds is the most common cause of premature failure on an otherwise sound pump.
Rebuilt rather than refurbished: full teardown and measurement, worn components replaced instead of cleaned and reused, sealing surfaces restored to specification, then bench calibration and testing. The record is what separates this from a used part — we can provide the test sheet for your order. Covered by a 12-month warranty.
Specifications
| Part number | 294000-1100 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 294000-1100, 22100-30140, 1KD-FTV |
| Application | Fits Toyota |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
