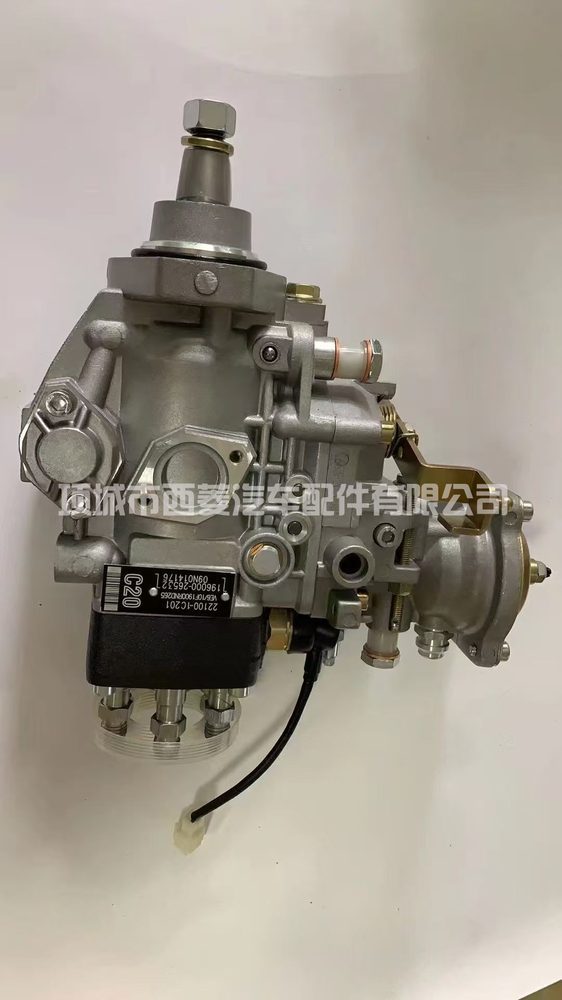

Remanufactured fuel injection pump, cross-ref 22100-1C201, HZJ79. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
22100-1C201 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 22100-1C201, HZJ79. Application recorded for this part: Fits Toyota — 1HZ. The injection pump is what generates injection pressure and meters fuel to each cylinder in firing order. Because it also provides the timing reference, its condition affects starting, smoke, power and fuel consumption together — a pump that is worn rarely produces a single isolated symptom. Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle. Diagnose the supply side before blaming the pump. Restricted filters, a tired lift pump or air being drawn into the suction line will produce symptoms almost identical to internal pump wear, and are far cheaper to resolve. Fitting notes: timing is everything here. Set the pump against the engine's timing marks rather than forcing anything, prime thoroughly before cranking, and check that the lift pump is delivering adequate supply pressure. Also replace the mounting seal and confirm there is no air left in the system before the first start. Our rebuild standard: strip to components, clean, measure against wear limits, replace what is worn, machine back to specification where required, then calibrate and bench-test every unit. Delivery, return flow, opening pressure and leakage are recorded, and units outside specification are not dispatched. Test sheets available on request, and every unit carries a 12-month warranty.
| Part number | 22100-1C201 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 22100-1C201, HZJ79 |
| Application | Fits Toyota — 1HZ |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
