About this part

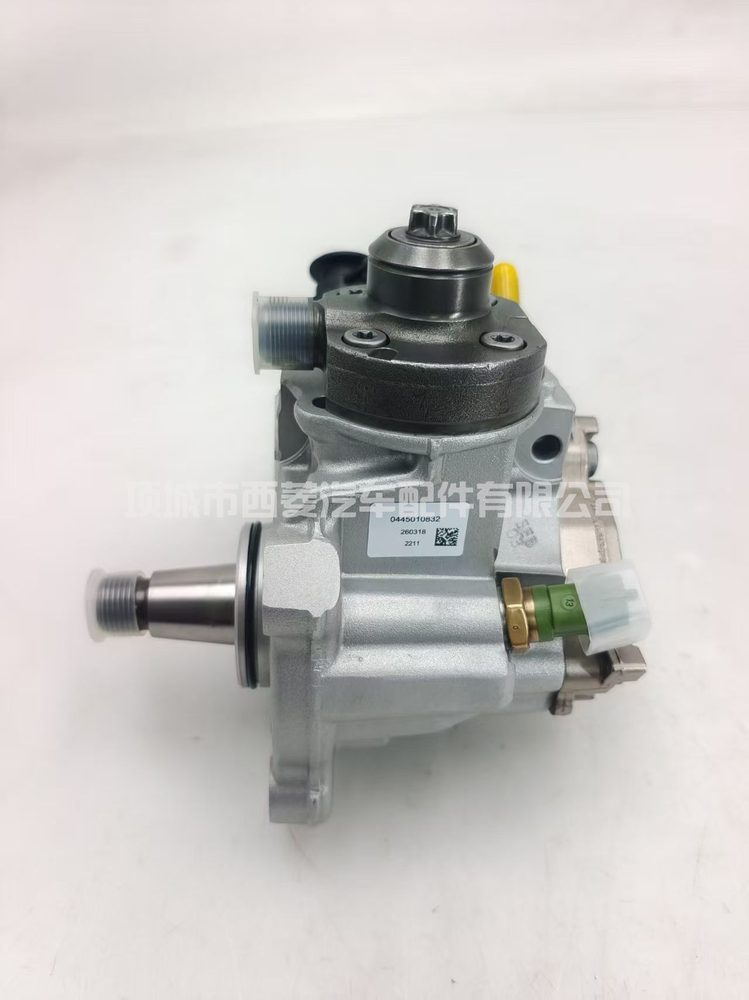

LR078840 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: LR078840, JDE38562, LR058160, 0445010832, AH2Q9B395. Application recorded for this part: 3.0.
The injection pump is what generates injection pressure and meters fuel to each cylinder in firing order. Because it also provides the timing reference, its condition affects starting, smoke, power and fuel consumption together — a pump that is worn rarely produces a single isolated symptom.
Symptoms associated with pump wear include hard starting when hot, loss of power, unstable idle, excess smoke, timing that will not hold, and in some cases diesel getting into the lubricating oil via a leaking drive shaft seal.
Before condemning the pump, rule out the cheap causes: supply restrictions, a weak lift pump, air ingress on the suction side and a blocked filter. Check supply pressure and condition at the pump inlet first, then look at delivery and timing.
Fitting notes: timing is everything here. Set the pump against the engine's timing marks rather than forcing anything, prime thoroughly before cranking, and check that the lift pump is delivering adequate supply pressure. Also replace the mounting seal and confirm there is no air left in the system before the first start.
Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
Specifications
| Part number | LR078840 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | LR078840, JDE38562, LR058160, 0445010832, AH2Q9B395 |
| Application | 3.0 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
