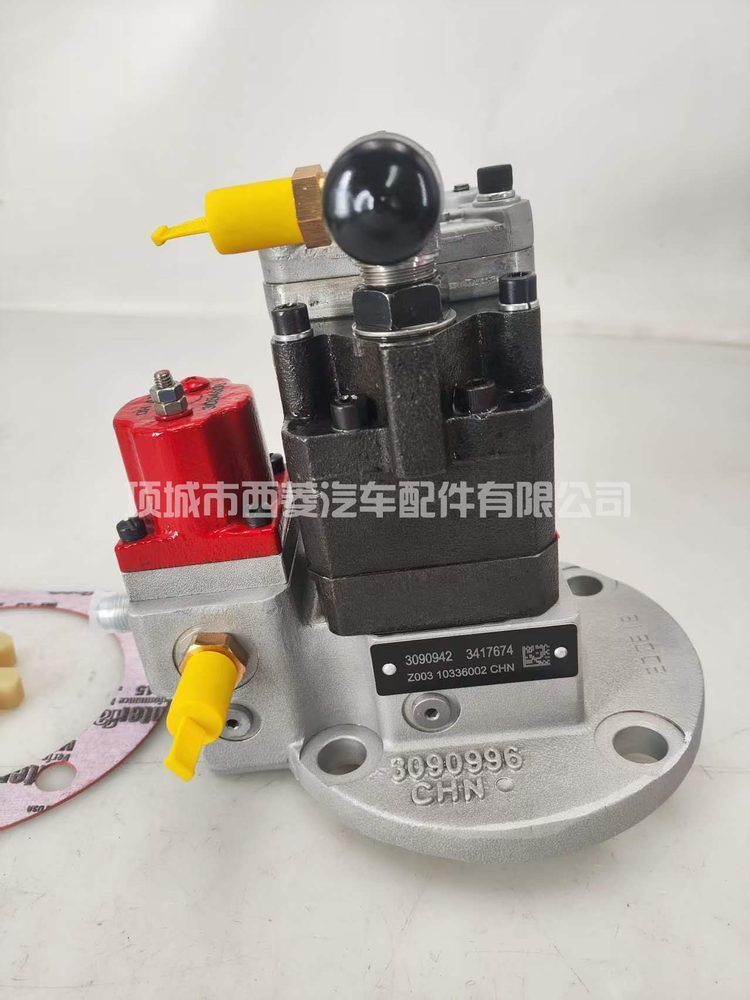

Remanufactured fuel injection pump, cross-ref 3417674, QSM11. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
3417674 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 3417674, QSM11. Application recorded for this part: M11, N14, ISM, QSM11. The injection pump is what generates injection pressure and meters fuel to each cylinder in firing order. Because it also provides the timing reference, its condition affects starting, smoke, power and fuel consumption together — a pump that is worn rarely produces a single isolated symptom. Expect extended cranking especially when hot, hesitant throttle response, smoke that persists rather than clears, timing that drifts or will not hold, and in some cases fuel in the sump or a pump body running unusually hot. Before condemning the pump, rule out the cheap causes: supply restrictions, a weak lift pump, air ingress on the suction side and a blocked filter. Check supply pressure and condition at the pump inlet first, then look at delivery and timing. Fitment notes: this unit must be timed to the engine, not simply bolted on. Never force the shaft to align — turn the engine over to meet it. Prime the system before cranking, fit a new drive seal where specified, and verify supply pressure from the lift pump before start-up. Running a dry pump, even briefly, causes damage that no warranty will cover. Rebuilt rather than refurbished: full teardown and measurement, worn components replaced instead of cleaned and reused, sealing surfaces restored to specification, then bench calibration and testing. The record is what separates this from a used part — we can provide the test sheet for your order. Covered by a 12-month warranty.
| Part number | 3417674 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 3417674, QSM11 |
| Application | M11, N14, ISM, QSM11 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Three very different things are sold under similar descriptions. Here is what separates them, and what to ask before you buy.
Read the guide →The pump sets pressure, quantity and timing. Here is how wear shows up, and the checks that separate pump faults from supply faults.
Read the guide →Water, dirt and misfuelling damage common rail components differently. What to check, and why cleaning the system matters as much as replacing parts.
Read the guide →
