About this part

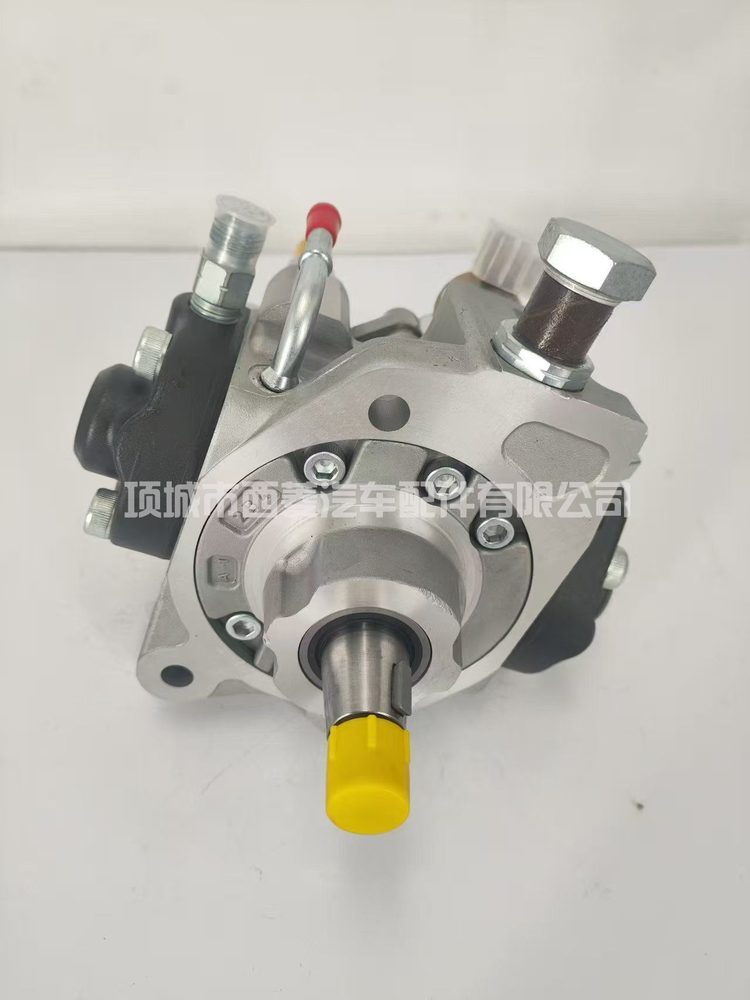

294000-1372 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 294000-1372, 294000-1453, 294000-0640, 1460A001, 1460A019, 1460A047, 1460A057. Application recorded for this part: 294000-1372, 294000-1453, 294000-0640, 1460A001, 1460A019, 1460A047, 1460A057.
This pump has two jobs that are easy to conflate: raising fuel to injection pressure, and metering the correct quantity at the correct moment. Wear affects both. The result is usually a combination of harder starting, drifting timing and visible smoke rather than one clean fault.
Symptoms associated with pump wear include hard starting when hot, loss of power, unstable idle, excess smoke, timing that will not hold, and in some cases diesel getting into the lubricating oil via a leaking drive shaft seal.
Diagnose the supply side before blaming the pump. Restricted filters, a tired lift pump or air being drawn into the suction line will produce symptoms almost identical to internal pump wear, and are far cheaper to resolve.
Installation notes: never rotate the pump by force to align it — bar the engine over instead. Prime before cranking, renew the drive seal, confirm supply pressure, and bleed the system properly. Dry running for even a few seconds is the most common cause of premature failure on an otherwise sound pump.
Rebuilt rather than refurbished: full teardown and measurement, worn components replaced instead of cleaned and reused, sealing surfaces restored to specification, then bench calibration and testing. The record is what separates this from a used part — we can provide the test sheet for your order. Covered by a 12-month warranty.
Specifications
| Part number | 294000-1372 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 294000-1372, 294000-1453, 294000-0640, 1460A001, 1460A019, 1460A047, 1460A057 |
| Application | 294000-1372, 294000-1453, 294000-0640, 1460A001, 1460A019, 1460A047, 1460A057 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
