About this part

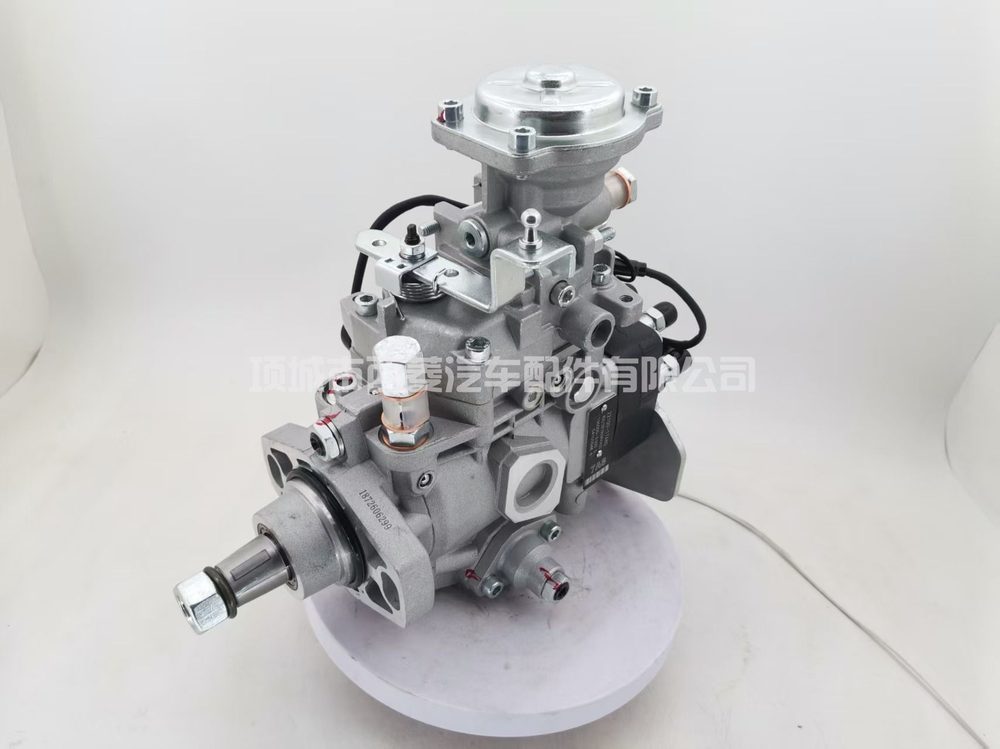

22100-1C050 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 22100-1C050, 22100-17A80, 196000-6300, 10F1900RND630. Application recorded for this part: Fits Toyota — VE6 1HZ.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
Symptoms associated with pump wear include hard starting when hot, loss of power, unstable idle, excess smoke, timing that will not hold, and in some cases diesel getting into the lubricating oil via a leaking drive shaft seal.
Diagnose the supply side before blaming the pump. Restricted filters, a tired lift pump or air being drawn into the suction line will produce symptoms almost identical to internal pump wear, and are far cheaper to resolve.
Installation notes: never rotate the pump by force to align it — bar the engine over instead. Prime before cranking, renew the drive seal, confirm supply pressure, and bleed the system properly. Dry running for even a few seconds is the most common cause of premature failure on an otherwise sound pump.
Our rebuild standard: strip to components, clean, measure against wear limits, replace what is worn, machine back to specification where required, then calibrate and bench-test every unit. Delivery, return flow, opening pressure and leakage are recorded, and units outside specification are not dispatched. Test sheets available on request, and every unit carries a 12-month warranty.
Specifications
| Part number | 22100-1C050 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 22100-1C050, 22100-17A80, 196000-6300, 10F1900RND630 |
| Application | Fits Toyota — VE6 1HZ |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
All manufacturer names, symbols and part numbers are used for identification and cross-reference purposes only. We are not an authorised distributor and are not affiliated with the original equipment manufacturer. Products offered are remanufactured or new aftermarket replacement parts unless stated otherwise.
