About this part

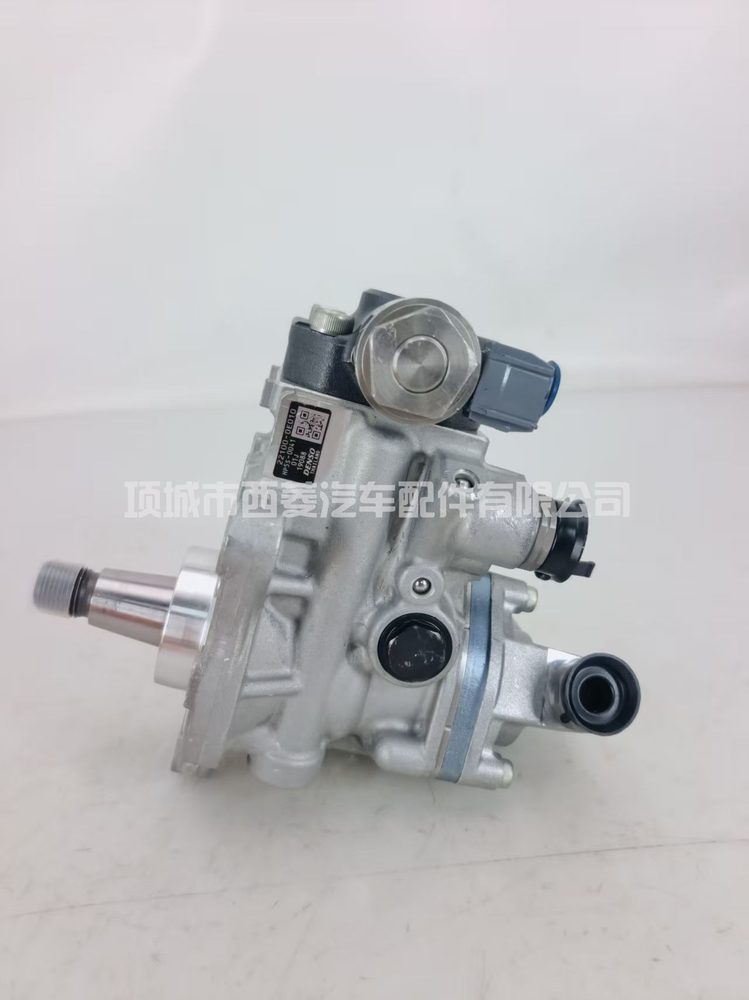

22100-0E010 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 22100-0E010, 299000-0040. Application recorded for this part: Fits Toyota — Hilux Prado Fortuner HP5 1GD 2GD.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle.
Diagnose the supply side before blaming the pump. Restricted filters, a tired lift pump or air being drawn into the suction line will produce symptoms almost identical to internal pump wear, and are far cheaper to resolve.
Set timing to the engine’s marks and never lever the pump into place — bar the engine over instead. Prime thoroughly, use a new mounting seal, verify lift pump supply pressure, and bleed before starting. A dry start is the fastest way to ruin a sound pump.
Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
Specifications
| Part number | 22100-0E010 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 22100-0E010, 299000-0040 |
| Application | Fits Toyota — Hilux Prado Fortuner HP5 1GD 2GD |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
