About this part

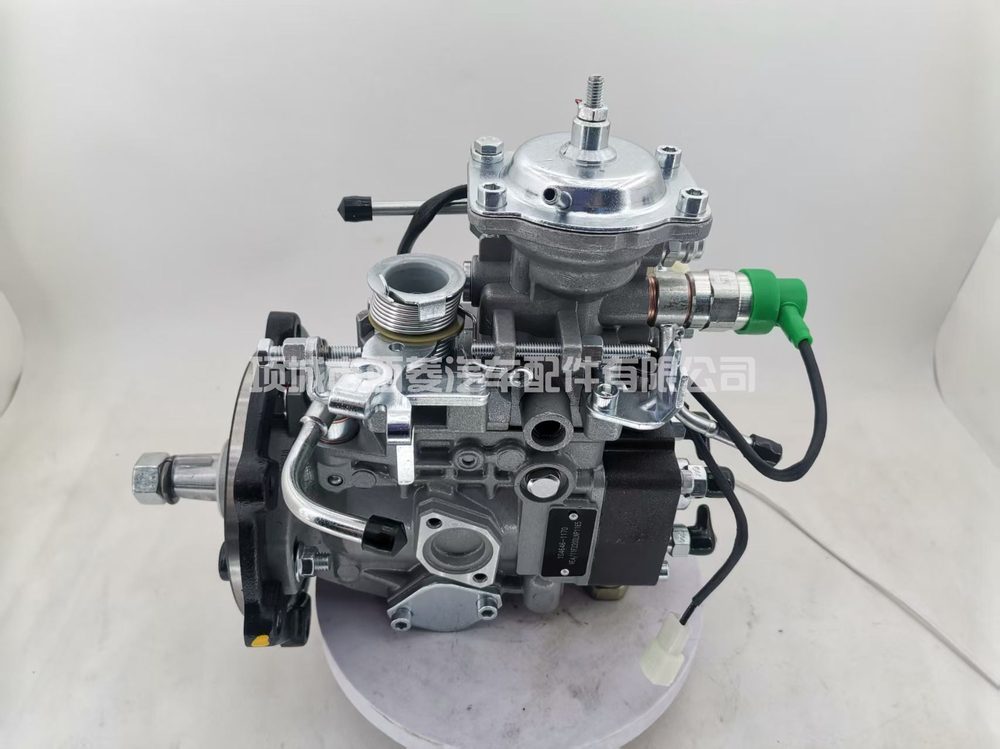

104646-1170 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 104646-1170, 104746-5113, 4JB1-TC. Application recorded for this part: Fits Isuzu.
The injection pump is what generates injection pressure and meters fuel to each cylinder in firing order. Because it also provides the timing reference, its condition affects starting, smoke, power and fuel consumption together — a pump that is worn rarely produces a single isolated symptom.
Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle.
Check supply pressure at the pump inlet and look for air in the clear line before assuming internal wear. Plenty of pumps get replaced for a blocked filter or a suction leak that costs a fraction to put right.
Set timing to the engine’s marks and never lever the pump into place — bar the engine over instead. Prime thoroughly, use a new mounting seal, verify lift pump supply pressure, and bleed before starting. A dry start is the fastest way to ruin a sound pump.
Our rebuild standard: strip to components, clean, measure against wear limits, replace what is worn, machine back to specification where required, then calibrate and bench-test every unit. Delivery, return flow, opening pressure and leakage are recorded, and units outside specification are not dispatched. Test sheets available on request, and every unit carries a 12-month warranty.
Specifications
| Part number | 104646-1170 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 104646-1170, 104746-5113, 4JB1-TC |
| Application | Fits Isuzu |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
All manufacturer names, symbols and part numbers are used for identification and cross-reference purposes only. We are not an authorised distributor and are not affiliated with the original equipment manufacturer. Products offered are remanufactured or new aftermarket replacement parts unless stated otherwise.
