About this part

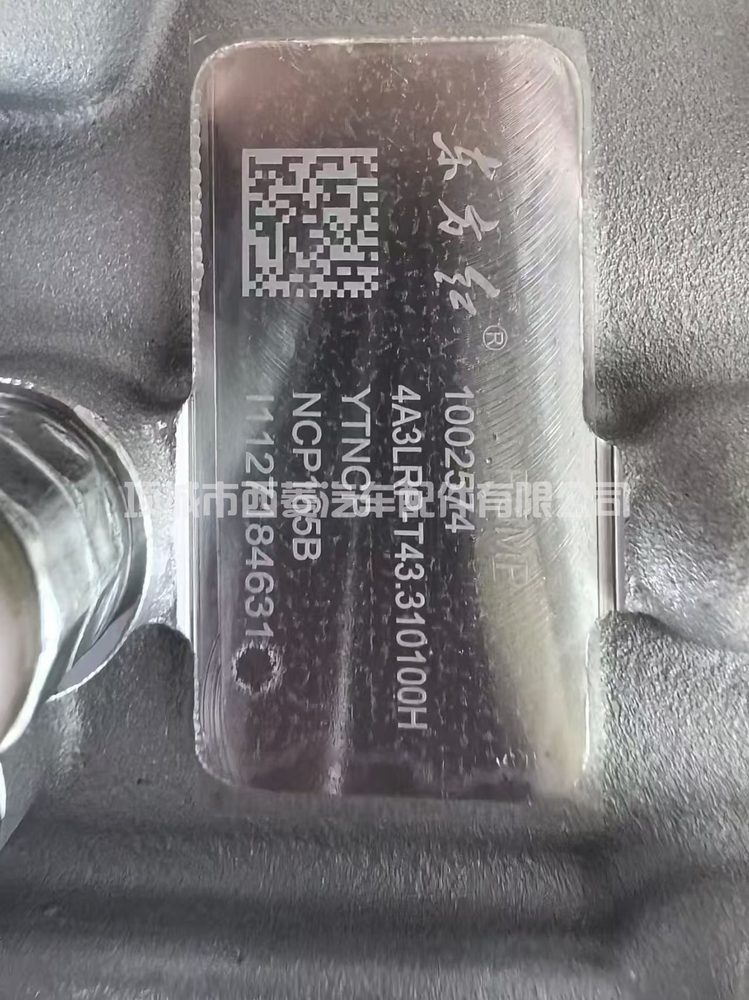

1002574 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 1002574, 4A3LRP-T43, 310100H. Application recorded for this part: 4A3LRP-T43.310100H.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle.
Eliminate the cheap causes first: filter condition, lift pump output, suction-side air leaks, fuel quality. Only then have delivery quantity and timing tested before committing to a replacement unit.
Installation notes: never rotate the pump by force to align it — bar the engine over instead. Prime before cranking, renew the drive seal, confirm supply pressure, and bleed the system properly. Dry running for even a few seconds is the most common cause of premature failure on an otherwise sound pump.
How we build it: the unit is fully disassembled, cleaned and measured, not simply resealed. Wear items — seals, springs, and where clearance is out of specification the plunger and barrel or nozzle assemblies — are replaced rather than reused. Sealing faces and bores are re-machined back to original clearances, then the unit is calibrated and run on a bench with delivery, return flow, opening pressure and leakage recorded. Anything outside specification does not ship. Test sheets for your specific units are available on request. Covered by a 12-month warranty.
Specifications
| Part number | 1002574 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 1002574, 4A3LRP-T43, 310100H |
| Application | 4A3LRP-T43.310100H |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
