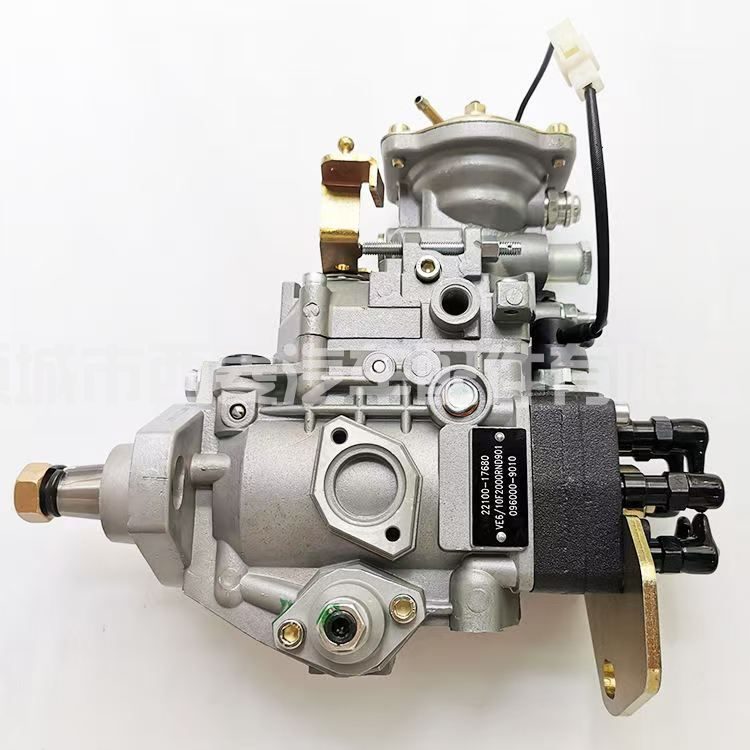

Remanufactured fuel injection pump, cross-ref 096000-9010, 22100-17680. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
096000-9010 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 096000-9010, 22100-17680. Application recorded for this part: VE. The injection pump is what generates injection pressure and meters fuel to each cylinder in firing order. Because it also provides the timing reference, its condition affects starting, smoke, power and fuel consumption together — a pump that is worn rarely produces a single isolated symptom. Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle. Confirm you actually need a pump. Verify supply pressure at the inlet, check for air ingress and restrictions, and have delivery and timing tested on the bench — many 'worn pumps' turn out to be supply faults. Set timing to the engine’s marks and never lever the pump into place — bar the engine over instead. Prime thoroughly, use a new mounting seal, verify lift pump supply pressure, and bleed before starting. A dry start is the fastest way to ruin a sound pump. What we do differently: every core is stripped to components, inspected against wear limits and measured before anything is reused. Worn parts are replaced, not cleaned and refitted. After reassembly the unit is bench-tested — delivery, return flow, opening pressure and leakage — and only units inside specification are dispatched. We can send the test sheet for your order before it leaves. Every remanufactured unit carries a 12-month warranty.
| Part number | 096000-9010 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 096000-9010, 22100-17680 |
| Application | VE |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
