About this part

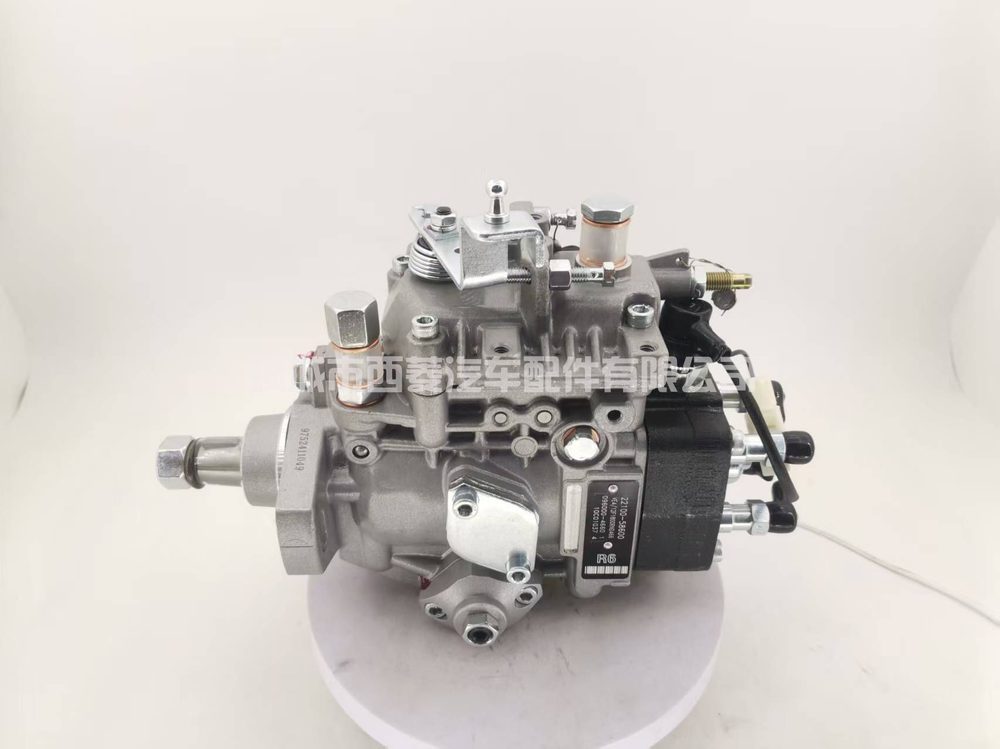

096000-4600 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 096000-4600, 22100-58470, 22100-58600. Application recorded for this part: Fits Toyota — VE 14B.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
The pattern is normally cumulative: slightly harder starting, then noticeable power loss, then smoke and unstable idle. Where the drive seal has failed, diesel in the lubricating oil is the warning that should stop you running the engine.
Check supply pressure at the pump inlet and look for air in the clear line before assuming internal wear. Plenty of pumps get replaced for a blocked filter or a suction leak that costs a fraction to put right.
Fitting notes: timing is everything here. Set the pump against the engine's timing marks rather than forcing anything, prime thoroughly before cranking, and check that the lift pump is delivering adequate supply pressure. Also replace the mounting seal and confirm there is no air left in the system before the first start.
Our rebuild standard: strip to components, clean, measure against wear limits, replace what is worn, machine back to specification where required, then calibrate and bench-test every unit. Delivery, return flow, opening pressure and leakage are recorded, and units outside specification are not dispatched. Test sheets available on request, and every unit carries a 12-month warranty.
Specifications
| Part number | 096000-4600 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 096000-4600, 22100-58470, 22100-58600 |
| Application | Fits Toyota — VE 14B |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
